Sheet Pile Driver
(1) We use big torque hydraulic motor on our sheet pile hammer.
(2) Our sheet pile driver is higher effiency comparing to other brand

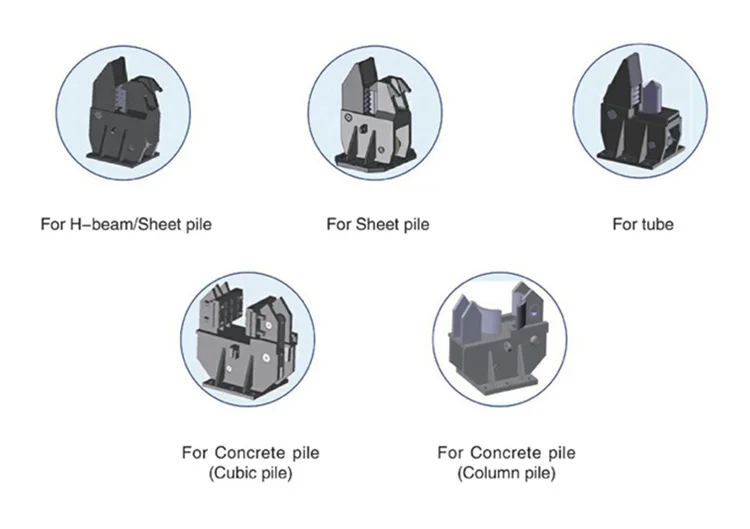

(3) The sheet pile hammer clips are longer working life with extra hard material
(4) Good orginized hose arrangement avoiding broken
- Product Details
- Technical Parameters
![]() |
||||||||||||||||||||||||||||||||||||||||||||||||||
![]() |
||||||||||||||||||||||||||||||||||||||||||||||||||
![]() |
||||||||||||||||||||||||||||||||||||||||||||||||||
![]() |
||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||
![]() |
||||||||||||||||||||||||||||||||||||||||||||||||||
![]() |
||||||||||||||||||||||||||||||||||||||||||||||||||
![]() |
||||||||||||||||||||||||||||||||||||||||||||||||||
![]() |
||||||||||||||||||||||||||||||||||||||||||||||||||
![]() |
||||||||||||||||||||||||||||||||||||||||||||||||||
![]() |
||||||||||||||||||||||||||||||||||||||||||||||||||
![]() |
||||||||||||||||||||||||||||||||||||||||||||||||||
![]() |
||||||||||||||||||||||||||||||||||||||||||||||||||
![]() |
Model/Description | Unit |
SPH08 | SPH10 | SPH14 |
Vibration Frequency | Rpm | 2800 | 2800 | 3000 |
Eccentricity Moment Torque | Nm | 40 | 50 | 65 |
Exciting Force | Ton | 38 | 45 | 60 |
Main Machine Weight | Kg | 2200 | 2500 | 2800 |
Weight Of Auxiliary Arm | Kg | 800 | 800 | 800 |
Operating Pressure Of Hydraulic System | Bar | 280 | 280 | 300 |
Flow Demand Of Hydraulic System | Lpm | 160 | 180 | 210 |
Longest Piling Length | M | 9 | 13 | 16 |
Applicable For Excavator | Ton | 18-25 | 26-35 | 36-50 |
Yes, We are near Shanghai, and you are welcome any time to check and inspection our factroy and producing.
Yes, we are always recruiting new distributors in different area.You can contact with our oneline service manager for more details.
Please contact our service manager for distributor recuriting and distributor support policy documents.
It is easy. You can contact our online servicer or send email, tell us your excavator model, and which type attachments you want, then we will contact you positive.
We ourselves are offering quality after sales service, and we also request our distributors have the same quality serivce idea to our users. We also set some overseas parts branch for quick parts delivery.
