Screening Bucket for Excavators

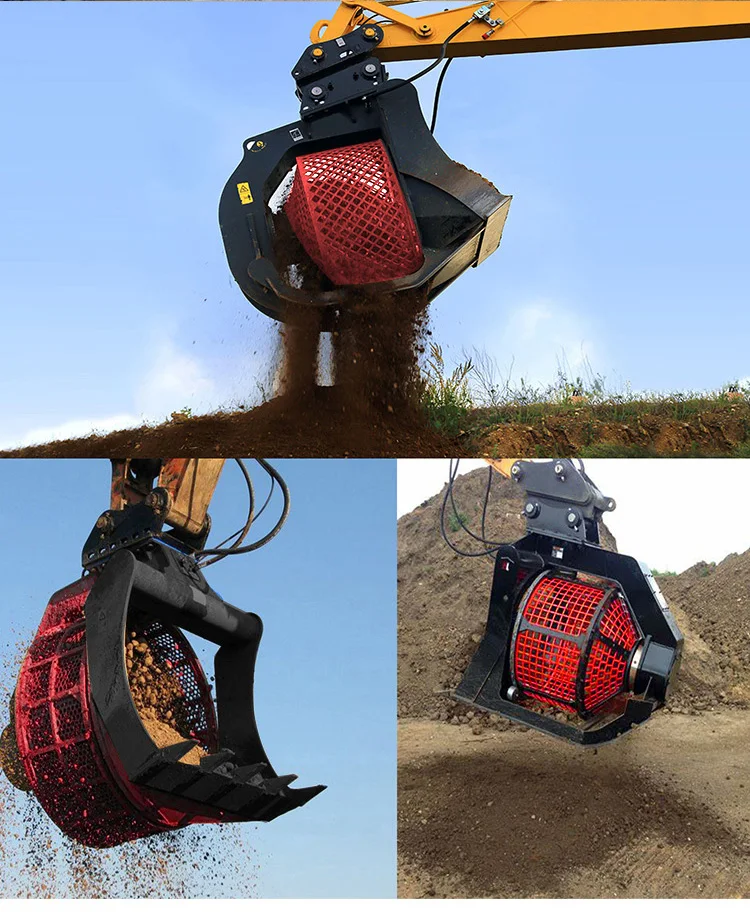

- This screening bucket can finish screening and digging jobs at the same time.

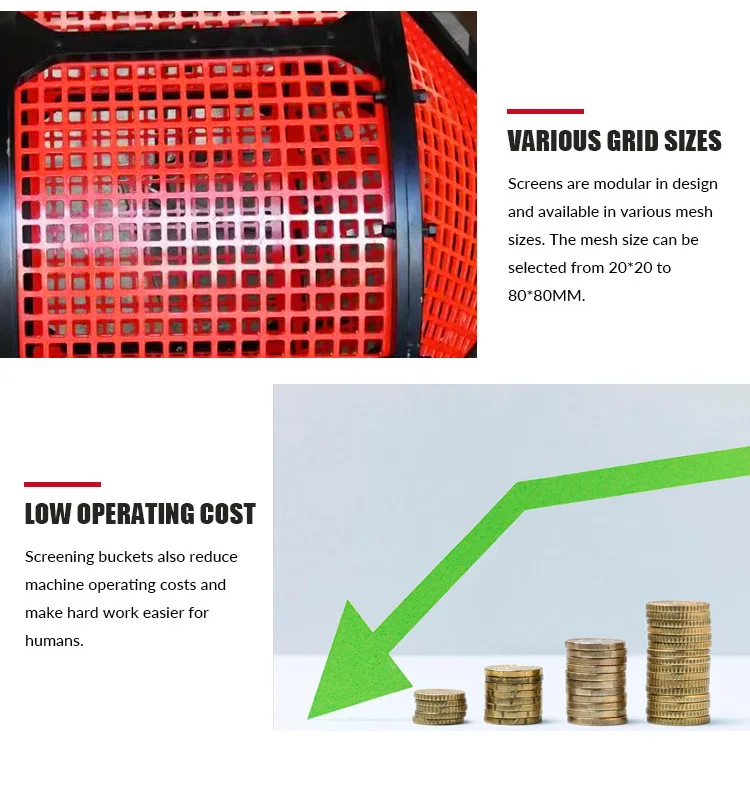

- The mesh is modular designed for easy replacing. The hole can be 20*20 to 80*80MM
- It is made from high wear resistance steel for longer working life.
- We have wide model range for different capacity excavators from 2ton -40ton.
- Details
- Parameters
![]() |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
![]() |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
![]() |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
![]() |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
![]() |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
![]() |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
![]() |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
![]() |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
![]() |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
![]() |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
![]() |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
![]() |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
![]() |
Model |
Carrier Weight(Ton) |
Width(MM) |
Diameter(MM) |
Capacity(CBM) |
Weight(Kg) |
Mesh Size(MM) |
Working Flow(L/Min) |
Working Pressure(MPA) |
SSB02 |
2.5-3.5 |
580 |
500 |
0.06 |
205 |
15-80MM |
10 |
18 |
SSB04 |
4-6 |
780 |
700 |
0.14 |
385 |
15 |
18 |
|
SSB05 |
7-9 |
900 |
810 |
0.3 |
670 |
20 |
18 |
|
SSB06 |
12-16 |
1200 |
1120 |
0.75 |
1090 |
50 |
18 |
|
SSB08 |
18-25 |
1450 |
1320 |
1.1 |
1930 |
50 |
18 |
|
SSB09 |
28-36 |
1500 |
1530 |
1.8 |
2550 |
60 |
18 |
