Rock Breaker
- Made from quality steels for longer working life

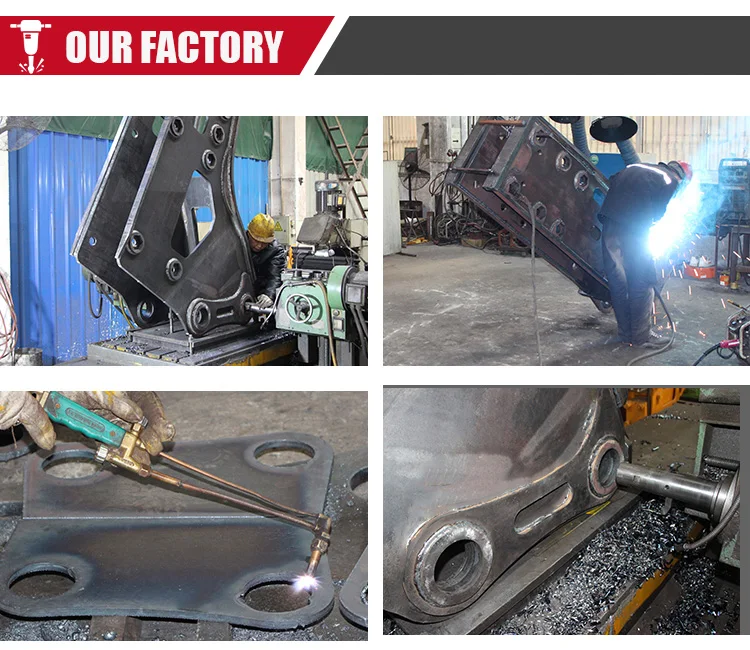

- Produced by advanced CNC with high precision

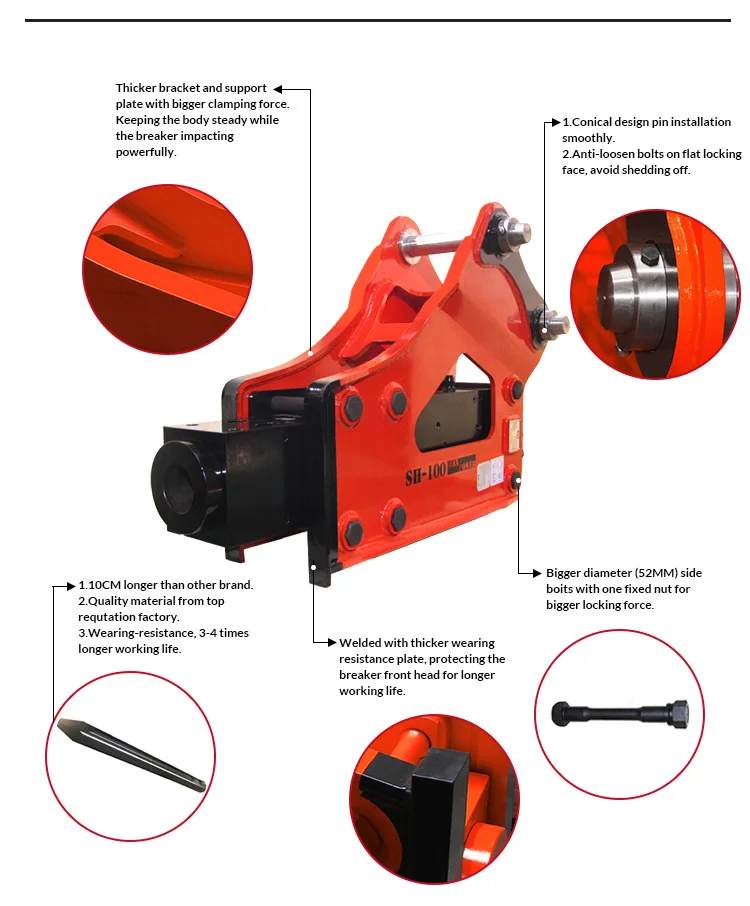

- Side type,open design, easy for maintenance

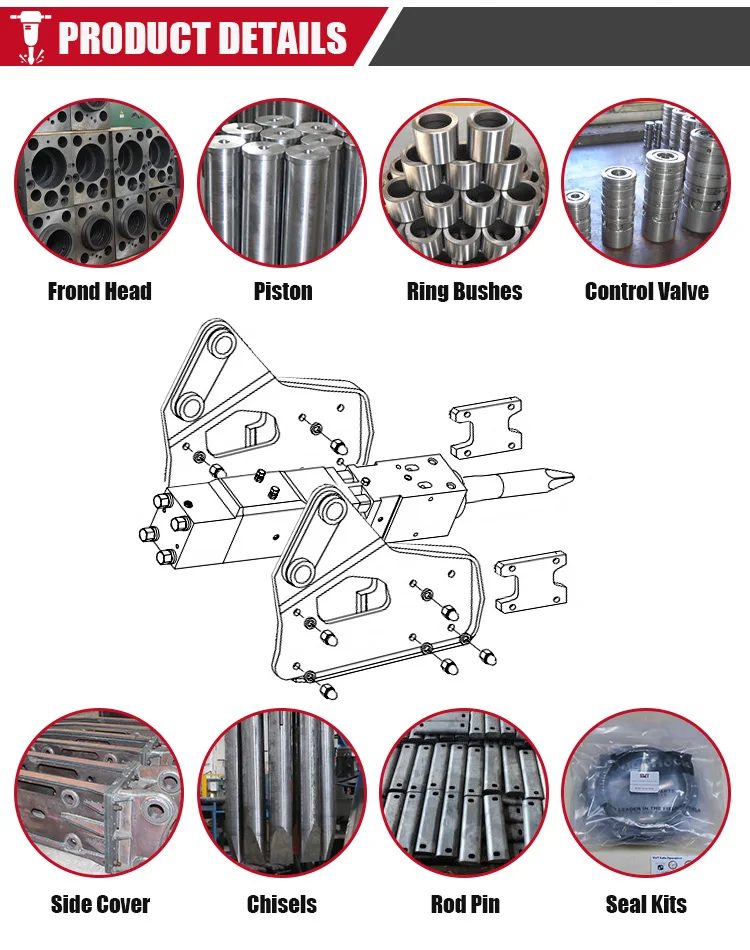

- Simple design,quick spare parts replacement
- Flexible operation with wide vision
- Cost saving with high efficiency
- Details
- Parameters
![]() |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
![]() |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
![]() |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
![]() |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
![]() |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
![]() |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
![]() |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
![]() |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
![]() |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
![]() |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
![]() |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
![]() |
ITEMS |
MODEL |
SH45 |
SH53 |
SH68 |
SH75 |
SH85 |
SH100 |
Operating Weight |
Kg |
90 |
126 |
255 |
384 |
510 |
790 |
Working Pressure |
Kg/CM² |
80-110 |
90-120 |
100-130 |
120-140 |
130-150 |
150-170 |
Hydraulic Flow |
L/Min |
20-30 |
26-41 |
30-45 |
40-80 |
45-85 |
80-110 |
Impact Frequency |
Bpm |
700-1200 |
600-1100 |
500-900 |
400-800 |
400-800 |
350-700 |
Impact Energy |
J |
290 |
320 |
690 |
900 |
1300 |
2100 |
Tool Diameter |
MM |
45 |
53 |
68 |
75 |
85 |
100 |
Hose Diameter |
Inch |
1/2 |
1/2 |
1/2 |
1/2 |
3/4 |
3/4 |
Suitable Carrier Weight |
Ton |
1.2-3.0 |
3.0-4.5 |
4.0-7.0 |
5.0-9.0 |
6.0-11.0 |
10-15.0 |
Carrier Bucket Volume |
M³ |
0.03-0.01 |
0.06-0.2 |
0.15-0.3 |
0.2-0.35 |
0.25-0.5 |
0.4-0.6 |
Accumulator |
No |
No |
No |
No |
No |
No |
|
Accumulator Pressure |
Kg/CM² |
N/A |
N/A |
N/A |
N/A |
N/A |
N/A |
Back Head Gas Pressure |
Kg/CM² |
16.5 |
16.5 |
16.5 |
16.5 |
16.5 |
16.5 |
ITEMS |
MODEL |
SH135 |
SH140 |
SH150 |
SH155 |
SH165 |
SH175 |
Operating Weight |
Kg |
1690 |
1803 |
2222 |
2440 |
2915 |
3788 |
Working Pressure |
Kg/CM² |
160-180 |
160-180 |
160-180 |
160-180 |
160-180 |
160-180 |
Hydraulic Flow |
L/Min |
100-150 |
120-180 |
150-210 |
180-240 |
200-260 |
210-290 |
Impact Frequency |
Bpm |
350-600 |
350-500 |
300-450 |
300-450 |
200-350 |
200-350 |
Impact Energy |
J |
3588 |
4500 |
7000 |
8500 |
9000 |
12000 |
Tool Diameter |
MM |
135 |
140 |
150 |
155 |
165 |
175 |
Hose Diameter |
Inch |
1″ |
1″ |
1″ |
1-1/4″ |
1-1/4″ |
1-1/4″ |
Suitable Carrier Weight |
Ton |
15-21 |
18-26 |
27-35 |
28-35 |
30-40 |
40-50 |
Carrier Bucket Volume |
M³ |
0.6-0.8 |
0.7-0.9 |
0.9-1.2 |
1.1-1.4 |
1.2-1.7 |
1.4-2.0 |
Accumulator |
No |
Yes |
Yes |
Yes |
Yes |
Yes |
|
Accumulator Pressure |
Kg/CM² |
N/A |
60+/-0.5 |
60+/-0.5 |
60+/-0.5 |
55-60 |
60+/-0.5 |
Back Head Gas Pressure |
Kg/CM² |
16.5 |
16.5 |
16.5 |
16.5 |
16.5 |
16.5 |
