Hydraulic Rock Breaker

  • One of the most popular excavator attachments
  • Working for building demolition and rock breaking jobs
  • Qualified in various rough working environment
  • Keeping longer working life than others
  • SWT hydraulic rock breaker-your best choice
Tell Us Your Excavator Model



Asking Price Now
  • Details
  • Parameters
TOP TYPE HYDRAULIG BREAKER; Easy-operating to achieve excavation work. Without side weight, reducing the rate of chisel breakage. longer total-length and heavier total-weight.
PRODUCT DETAILS for the SWT TOP TYPE HYDRAULIG BREAKER ；

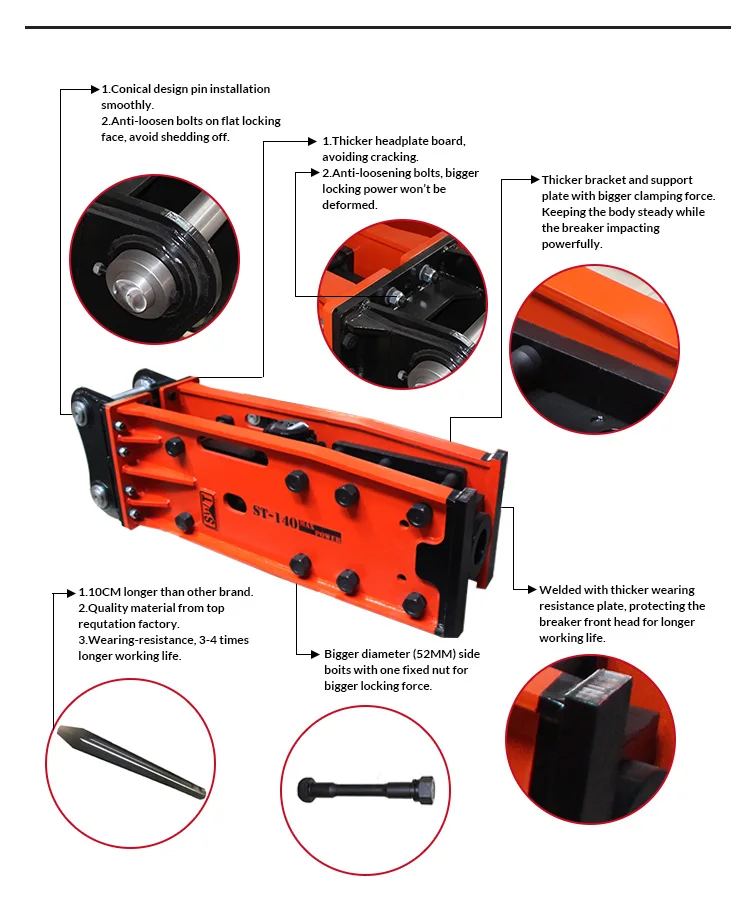

PRODUCT DETAILS for the SWT TOP TYPE HYDRAULIG BREAKER:A1:Conical design pin installation smoothly.A2:Anti-loosen bolts on flat locking face, avoid shedding off.B1:Thicker headplate board,avoiding cracking.B2:Anti-loosening bolts, bigger locking power won't be deformed.C1:Thicker bracket and support plate with bigger clamping force.Keeping the body steady while the breaker impacting powerfully.D1:10CM longer than other brand.D2:Quality material from top requtation factory.D3:Wearing-resistance, 3-4 times longer working life.E:Bigger diameter (52MM) side boits with one fixed nut for bigger locking force.F:Welded with thicker wearing resistance plate, protecting the breaker front head for longer working life.
PRODUCT ADVANTAGE for the SWT Top Type Hydraulic Breaker:High-Quality Materials for Superior DurabilityMade from premium materials like 40CrNiMo, 42CrMo, 20CrMo, 20CrNiMoA, and more, these alloys are engineered for exceptional strength, reliability, and a longer service life.High precision accessories & reduce wear and tear.Heat treatment Reduce the deformation and not easy scratched.Suitable excavator：DOOSAN, SANY,KOBELCO, CAT, KOMATSU,HITACH, VOLVO, HYUNDAl etc.

ITEMS

MODEL

ST45

ST53

ST68

ST75

ST85

ST100

Operating Weight

Kg

98

159

308

392

597

902

Working Pressure

Kg/CM²

80-110

90-120

100-130

120-140

130-150

150-170

Hydraulic Flow

L/Min

20-30

26-41

30-45

40-80

45-85

80-110

Impact Frequency

Bpm

700-1200

600-1100

500-900

400-800

400-800

350-700

Impact Energy

J

290

320

690

900

1300

2100

Tool Diameter

MM

45

53

68

75

85

100

Hose Diameter

Inch

1/2

1/2

1/2

1/2

3/4

3/4

Suitable Carrier Weight

Ton

1.2-3.0

3.0-4.5

4.0-7.0

5.0-9.0

6.0-11.0

10-15.0

Carrier Bucket Volume

M³

0.03-0.01

0.06-0.2

0.15-0.3

0.2-0.35

0.25-0.5

0.4-0.6

Accumulator

No

No

No

No

No

No

Accumulator Pressure

Kg/CM²

N/A

N/A

N/A

N/A

N/A

N/A

Back Head Gas Pressure

Kg/CM²

16.5

16.5

16.5

16.5

16.5

16.5



ITEMS

MODEL

ST135

ST140

ST150

ST155

ST165

ST175

Operating Weight

Kg

1723

2030

2265

2760

2972

4100

Working Pressure

Kg/CM²

160-180

160-180

160-180

160-180

160-180

160-180

Hydraulic Flow

L/Min

100-150

120-180

150-210

180-240

200-260

210-290

Impact Frequency

Bpm

350-600

350-500

300-450

300-450

200-350

200-350

Impact Energy

J

3588

4500

7000

8500

9000

12000

Tool Diameter

MM

135

140

150

155

165

175

Hose Diameter

Inch

1″

1″

1″

1-1/4″

1-1/4″

1-1/4″

Suitable Carrier Weight

Ton

15-21

18-26

27-35

28-35

30-40

40-50

Carrier Bucket Volume

M³

0.6-0.8

0.7-0.9

0.9-1.2

1.1-1.4

1.2-1.7

1.4-2.0

Accumulator

No

Yes

Yes

Yes

Yes

Yes

Accumulator Pressure

Kg/CM²

N/A

60+/-0.5

60+/-0.5

60+/-0.5

55-60

60+/-0.5

Back Head Gas Pressure

Kg/CM²

16.5

16.5

16.5

16.5

16.5

16.5

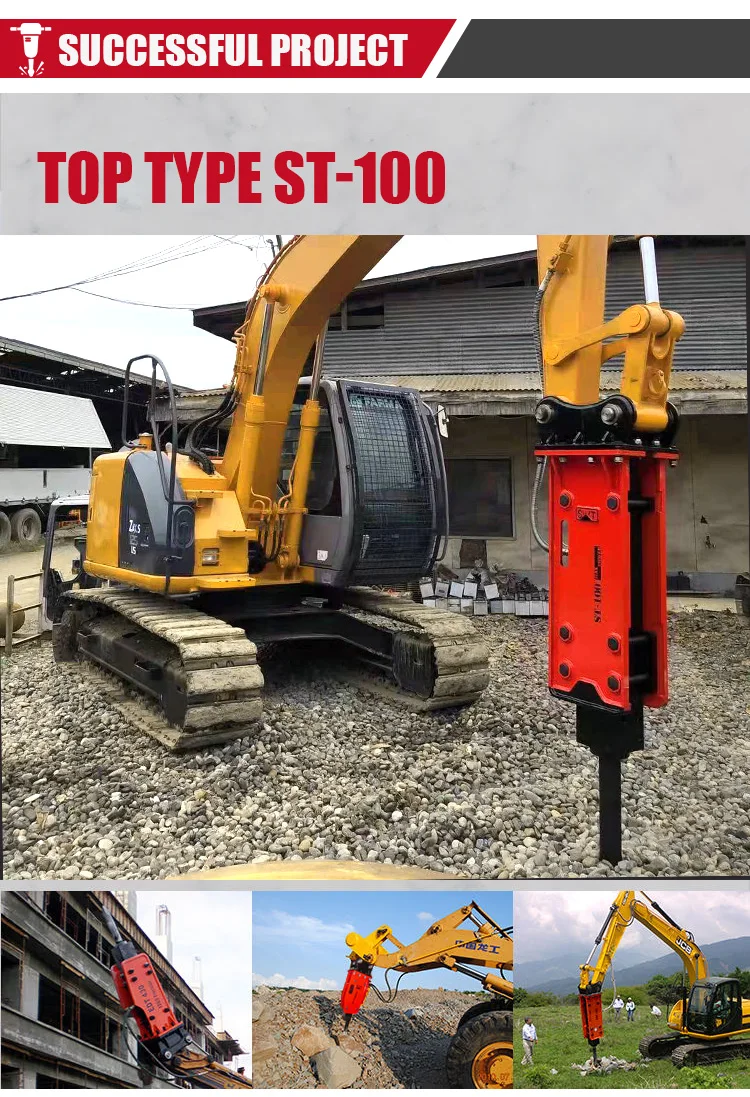

SUCCESSFUL PROJECT for the SWT TOP TYPE ST-100,Suitable for all backhoe loaders, excavators and skid steer loaders from 10 tons to 15 tons.Jakarta, Indonesia
SUCCESSFUL PROJECT for the SWT TOP TYPE ST-100,Suitable for all backhoe loaders, excavators and skid steer loaders from 10 tons to 15 tonsKuala Lumpur, Malaysia
SWT DEMOLTION TOOLSSWT ranks among the best excavator attachments manufacturers with more than 20 years exprience, as well as the top OEM for big bands excavator. SWT hydraulic breaker is one of the most popular brand over the world cause of it is reliable quality and featured longer working life. It has been sold in over 50 countries through our global dsitribution network and overseas branch. We support and grow up with our global dealers together like part-ners, and we are always looking for and welcom new partners for global market sales.

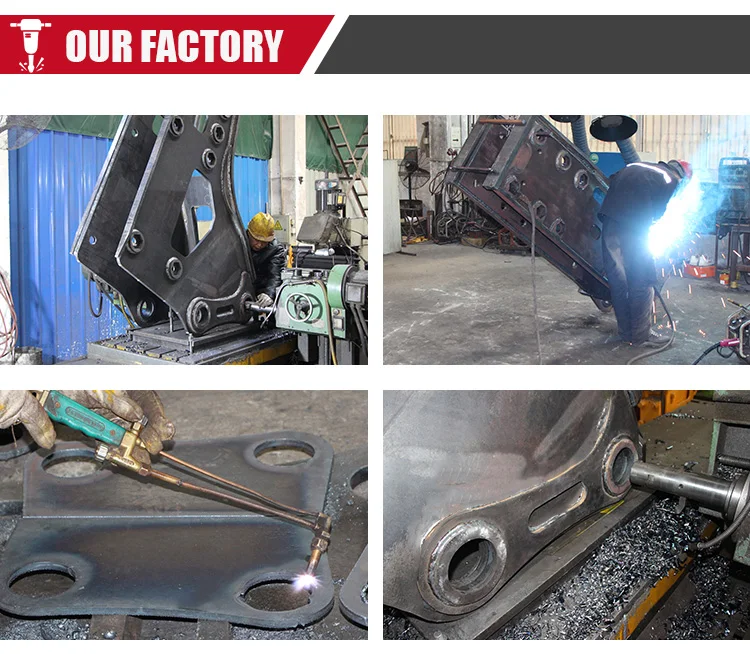

SWT hydraulic breaking tool manufacturing factory

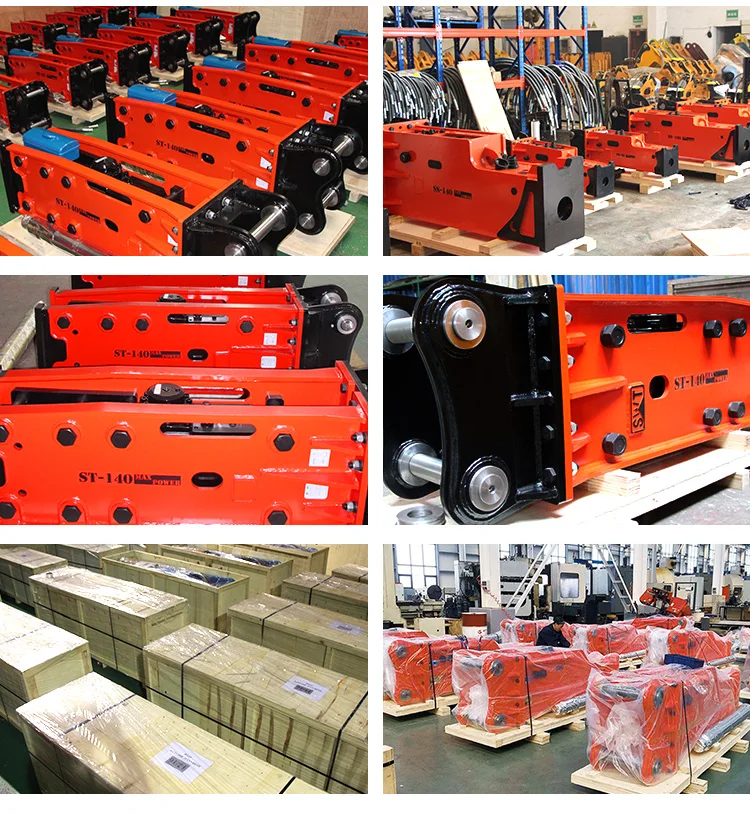

SWT hydraulic breaker stock overview
SWT hydraulic breaking tool production license, quality inspection series certificates
CONTACT US : Email:info@sanahtech.com;phone:+86-21-57773290

PRODUCT PARAMETER for the SWT Top Type Hydraulic Breaker

ITEMS

MODEL

ST45

ST53

ST68

ST75

ST85

ST100

Operating Weight

Kg

98

159

308

392

597

902

Working Pressure

Kg/CM²

80-110

90-120

100-130

120-140

130-150

150-170

Hydraulic Flow

L/Min

20-30

26-41

30-45

40-80

45-85

80-110

Impact Frequency

Bpm

700-1200

600-1100

500-900

400-800

400-800

350-700

Impact Energy

J

290

320

690

900

1300

2100

Tool Diameter

MM

45

53

68

75

85

100

Hose Diameter

Inch

1/2

1/2

1/2

1/2

3/4

3/4

Suitable Carrier Weight

Ton

1.2-3.0

3.0-4.5

4.0-7.0

5.0-9.0

6.0-11.0

10-15.0

Carrier Bucket Volume

M³

0.03-0.01

0.06-0.2

0.15-0.3

0.2-0.35

0.25-0.5

0.4-0.6

Accumulator

No

No

No

No

No

No

Accumulator Pressure

Kg/CM²

N/A

N/A

N/A

N/A

N/A

N/A

Back Head Gas Pressure

Kg/CM²

16.5

16.5

16.5

16.5

16.5

16.5



ITEMS

MODEL

ST135

ST140

ST150

ST155

ST165

ST175

Operating Weight

Kg

1723

2030

2265

2760

2972

4100

Working Pressure

Kg/CM²

160-180

160-180

160-180

160-180

160-180

160-180

Hydraulic Flow

L/Min

100-150

120-180

150-210

180-240

200-260

210-290

Impact Frequency

Bpm

350-600

350-500

300-450

300-450

200-350

200-350

Impact Energy

J

3588

4500

7000

8500

9000

12000

Tool Diameter

MM

135

140

150

155

165

175

Hose Diameter

Inch

1″

1″

1″

1-1/4″

1-1/4″

1-1/4″

Suitable Carrier Weight

Ton

15-21

18-26

27-35

28-35

30-40

40-50

Carrier Bucket Volume

M³

0.6-0.8

0.7-0.9

0.9-1.2

1.1-1.4

1.2-1.7

1.4-2.0

Accumulator

No

Yes

Yes

Yes

Yes

Yes

Accumulator Pressure

Kg/CM²

N/A

60+/-0.5

60+/-0.5

60+/-0.5

55-60

60+/-0.5

Back Head Gas Pressure

Kg/CM²

16.5

16.5

16.5

16.5

16.5

16.5
