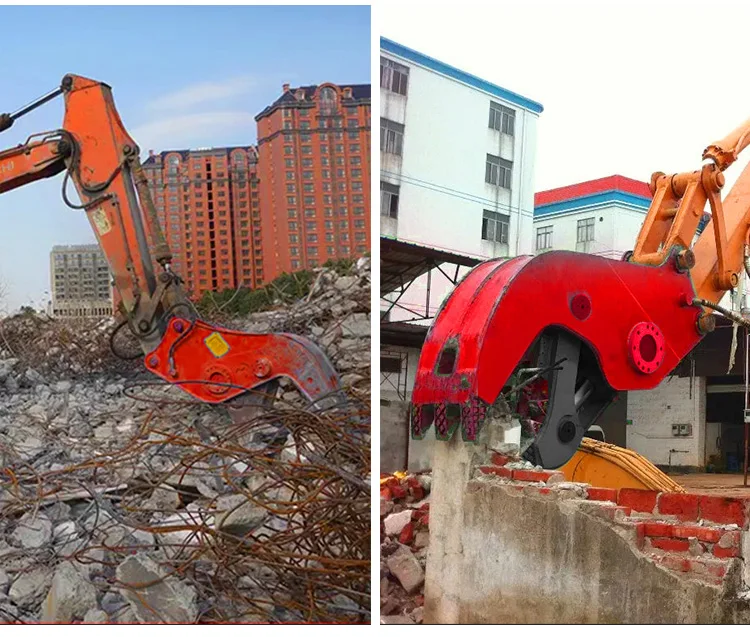

Excavator Concrete Pulverizer

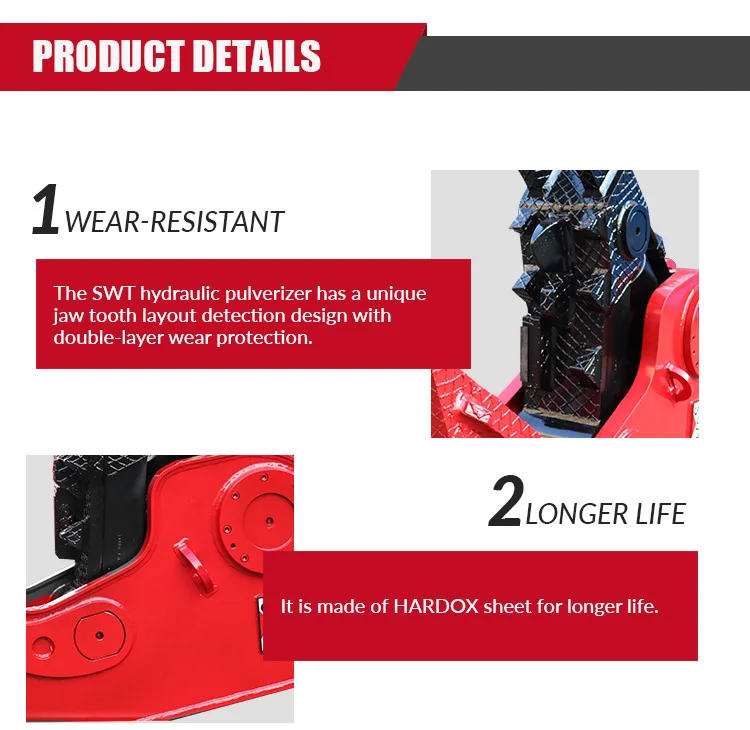

- The wear-resistant steel plate is matched with the wear-resistant welding rod for longer working life

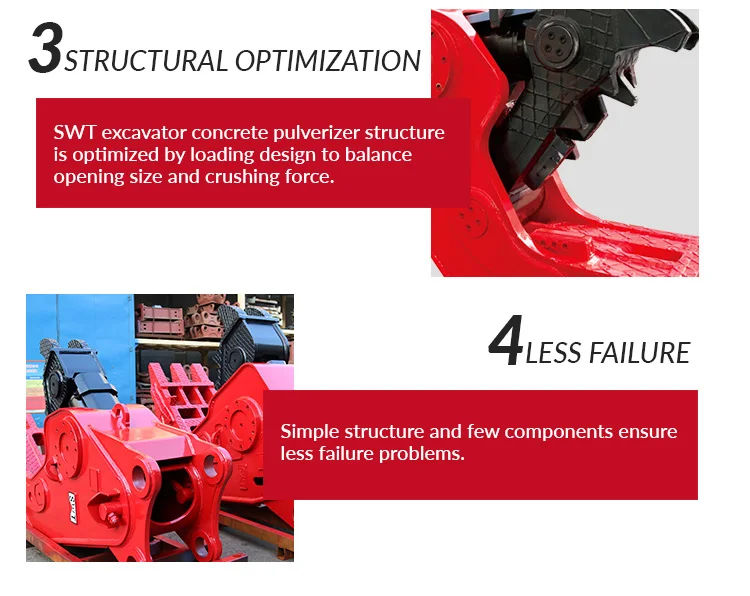

- The high-strength plate with a reasonable structure greatly reduces its own weight
- The exquisite oil cylinder design makes the crushing force larger and the crushing speed versatile
- SWT concrete pulverizers can install on brands excavators from 2 ton – 50 ton
- Details
- Parameters
![]() |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
![]() |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
![]() |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
![]() |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
![]() |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
![]() |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
![]() |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
![]() |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
![]() |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
![]() |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
![]() |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
![]() |
Model | Unit | SHP04 | SHP06 | SHP08 | SHP10 |
Dead Weight | Kg | 660 | 1350 | 1750 | 2750 |
Max Opening | MM | 577 | 730 | 900 | 1015 |
Length | MM | 1720 | 2000 | 2150 | 2374 |
Width | MM | 658 | 660 | 706 | 860 |
Max Crushing Force | Ton | 83 | 105 | 165 | 225 |
Max Shear Force | Ton | 126 | 165 | 210 | 305 |
Blade Length | MM | 120 | 150 | 180 | 200 |
Driving Oil Pressure | Kg/Cm² | 230 | 300 | 320 | 380 |
Suitable Excavator | Ton | 6-12 | 12-18 | 18-26 | 26-30 |
